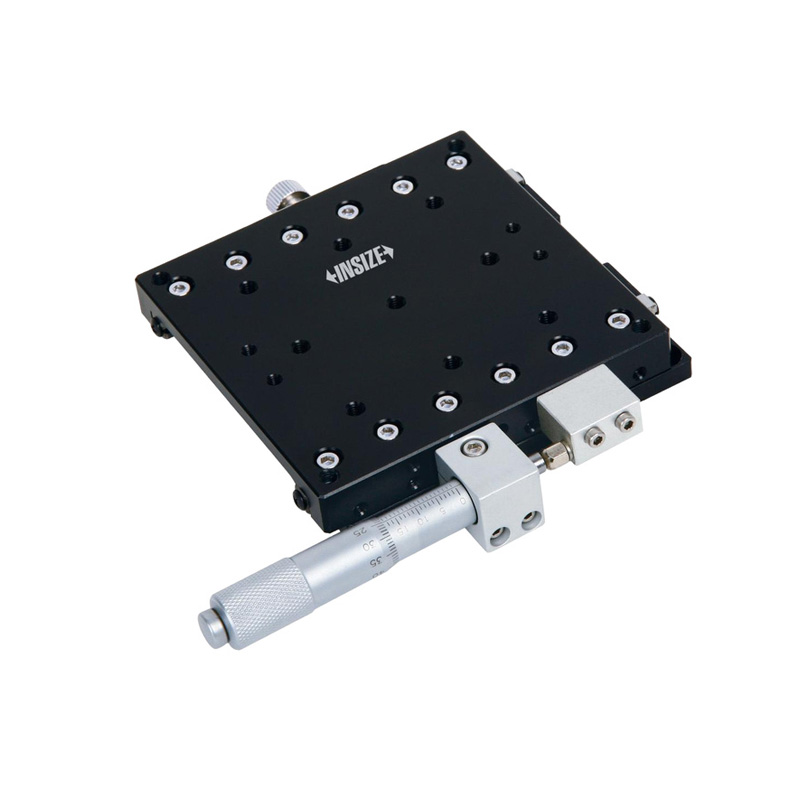

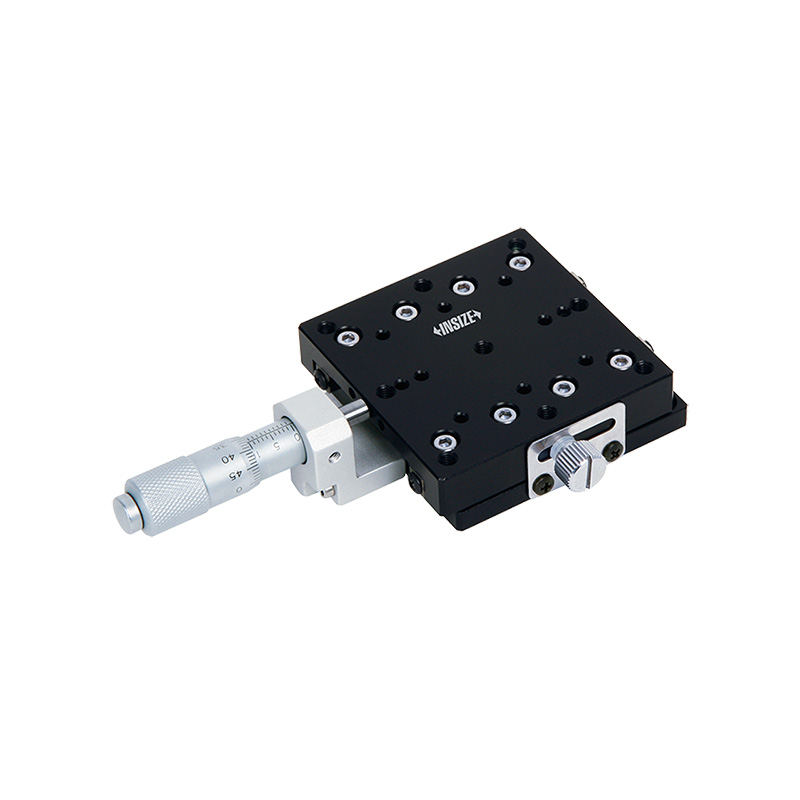

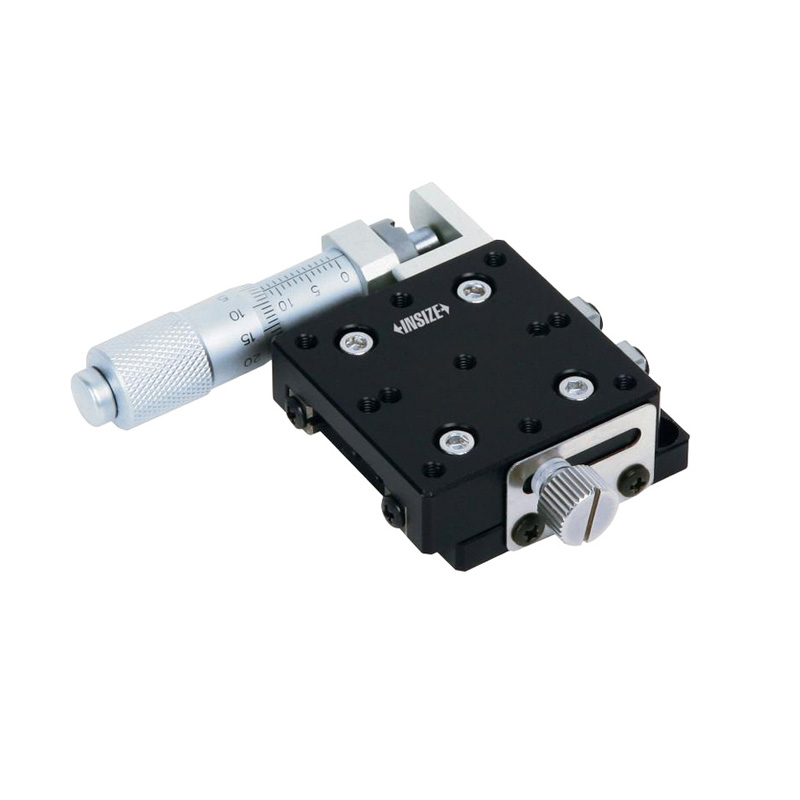

X轴位移平台
型号: 6582
交叉滚子导轨, 可实现高精度、平滑的移动
平台材质为铝合金

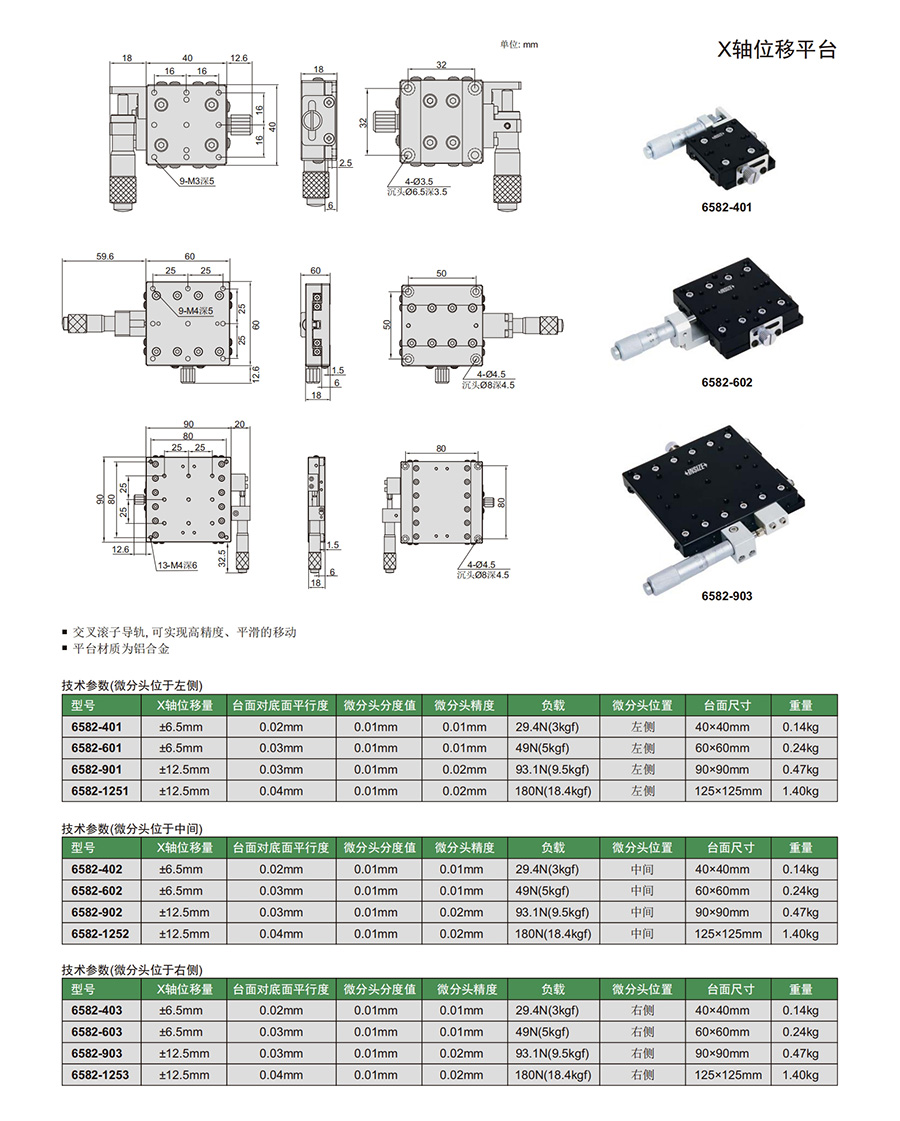

| 型号 | 平行度 | X轴位移量 | 微分头分度值 | 微分头精度 | 工作台 |
|---|---|---|---|---|---|
| 6582-401 | 0.02mm | ±6.5mm | 0.01mm | 0.01mm | 40x40mm |
| 6582-601 | 0.03mm | ±6.5mm | 0.01mm | 0.01mm | 60x60mm |
| 6582-901 | 0.03mm | ±12.5mm | 0.01mm | 0.02mm | 90x90mm |
| 6582-1251 | 0.04mm | ±12.5mm | 0.01mm | 0.02mm | 125x125mm |
| 6582-402 | 0.02mm | ±6.5mm | 0.01mm | 0.01mm | 40x40mm |
| 6582-602 | 0.03mm | ±6.5mm | 0.01mm | 0.01mm | 60x60mm |
| 6582-902 | 0.03mm | ±12.5mm | 0.01mm | 0.02mm | 90x90mm |
| 6582-1252 | 0.04mm | ±12.5mm | 0.01mm | 0.02mm | 125x125mm |
| 6582-403 | 0.02mm | ±6.5mm | 0.01mm | 0.01mm | 40x40mm |
| 6582-603 | 0.03mm | ±6.5mm | 0.01mm | 0.01mm | 60x60mm |
| 6582-903 | 0.03mm | ±12.5mm | 0.01mm | 0.02mm | 90x90mm |
| 6582-1253 | 0.04mm | ±12.5mm | 0.01mm | 0.02mm | 125x125mm |
