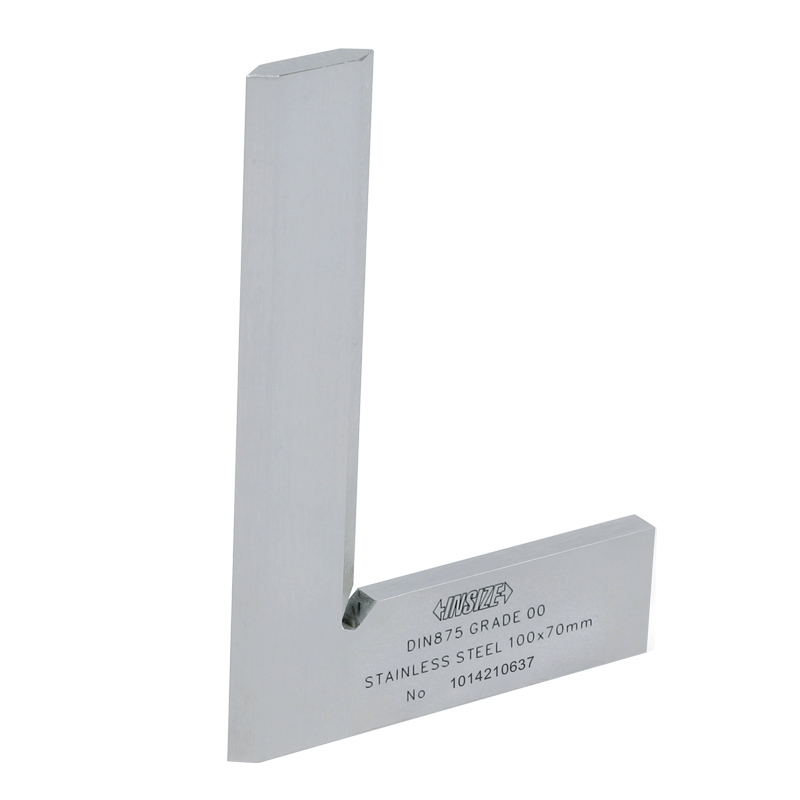

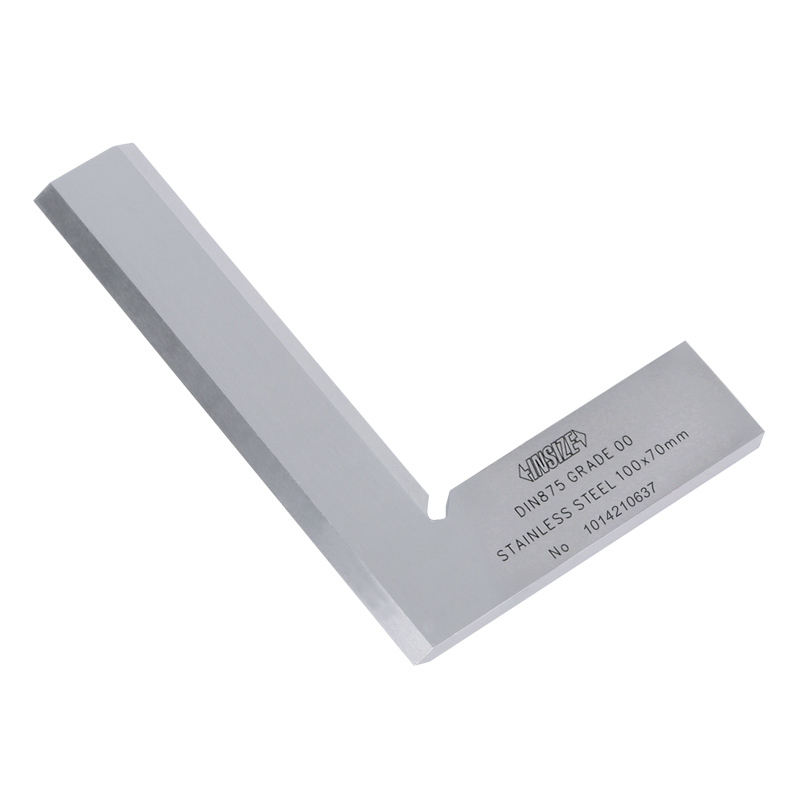

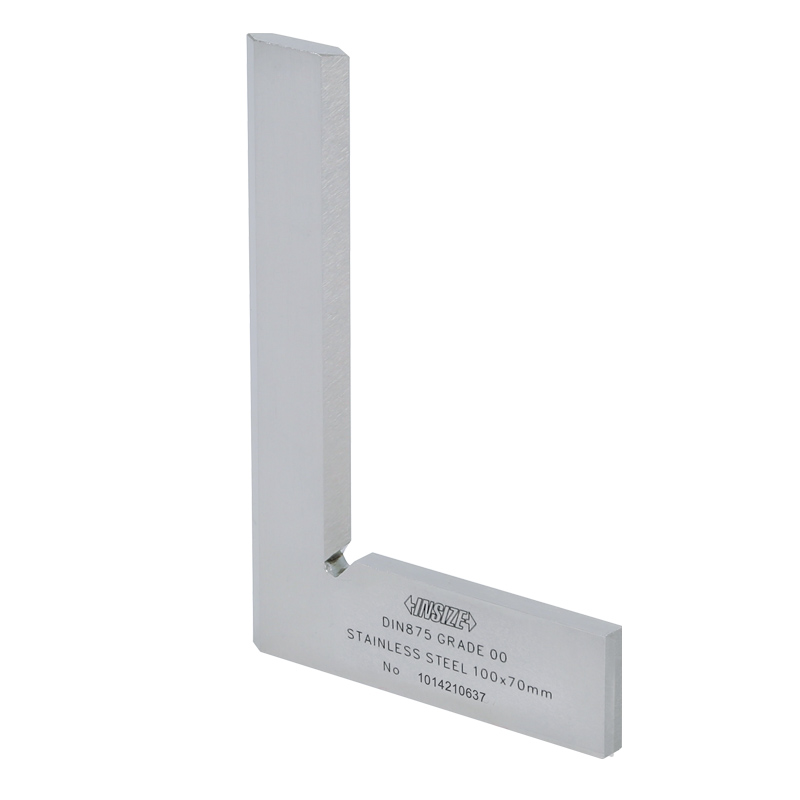

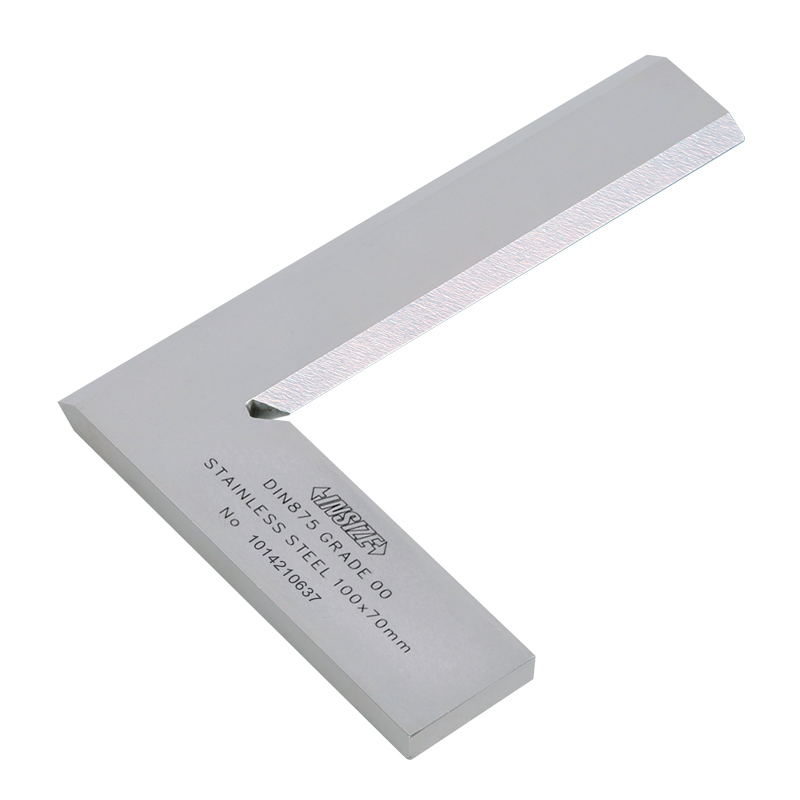

刀口角尺
型号: 4790
刀口内/外测量面
不锈钢尺身, 淬火
表面镀暗铬, 避免反光, 便于观察

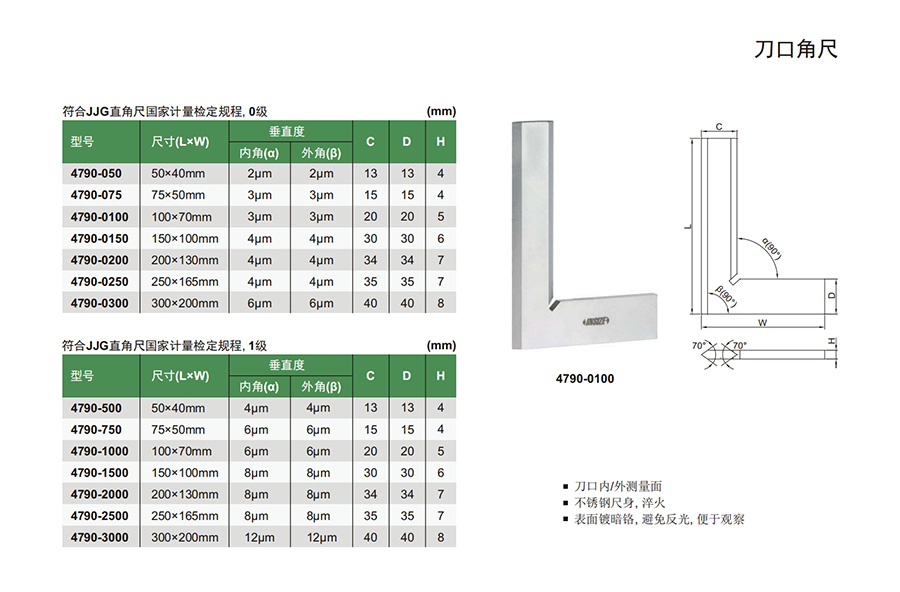

| 型号 | 内角垂直度 | 外角垂直度 | 尺寸 |
|---|---|---|---|
| 4790-050 | 2µm | 2µm | 50x40mm |
| 4790-075 | 3µm | 3µm | 75x50mm |
| 4790-0100 | 3µm | 3µm | 100x70mm |
| 4790-0150 | 4µm | 4µm | 150x100mm |
| 4790-0200 | 4µm | 4µm | 200x130mm |
| 4790-0250 | 4µm | 4µm | 250x165mm |
| 4790-0300 | 6µm | 6µm | 300x200mm |
| 4790-500 | 4µm | 4µm | 50x40mm |
| 4790-750 | 6µm | 6µm | 75x50mm |
| 4790-1000 | 6µm | 6µm | 100x70mm |
| 4790-1500 | 8µm | 8µm | 150x100mm |
| 4790-2000 | 8µm | 8µm | 200x130mm |
| 4790-2500 | 8µm | 8µm | 250x165mm |
| 4790-3000 | 12µm | 12µm | 300x200mm |
