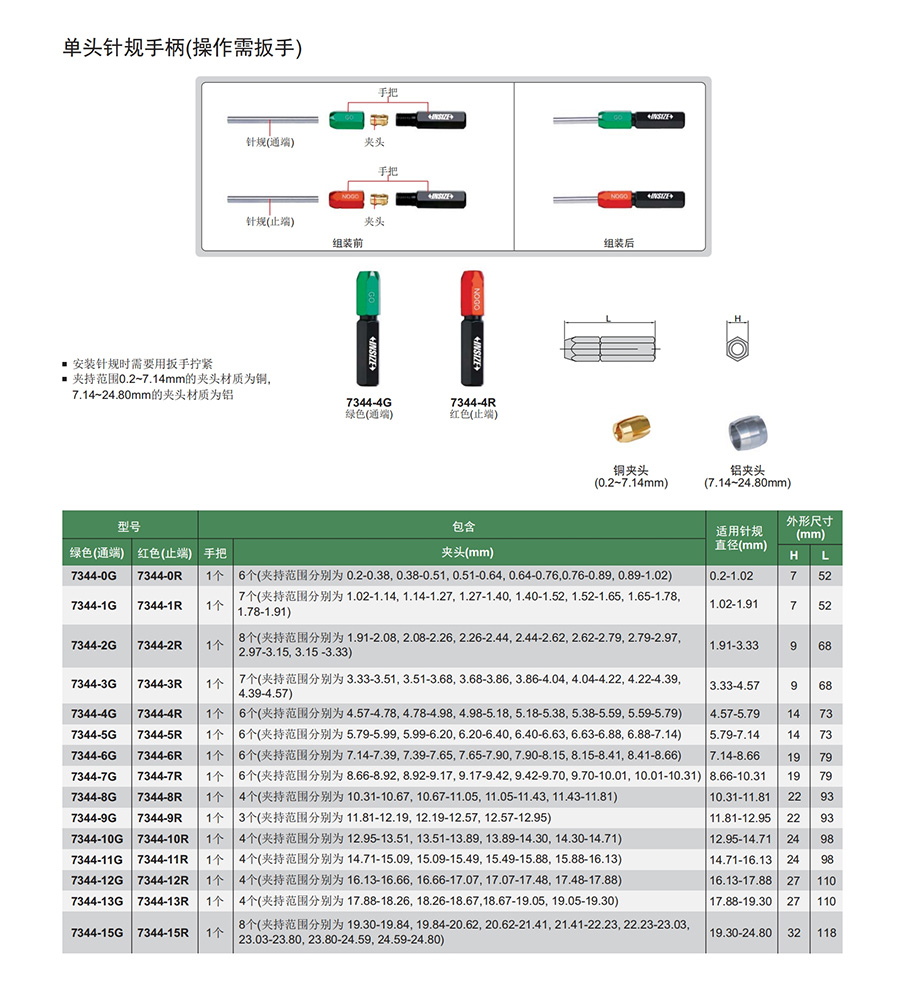

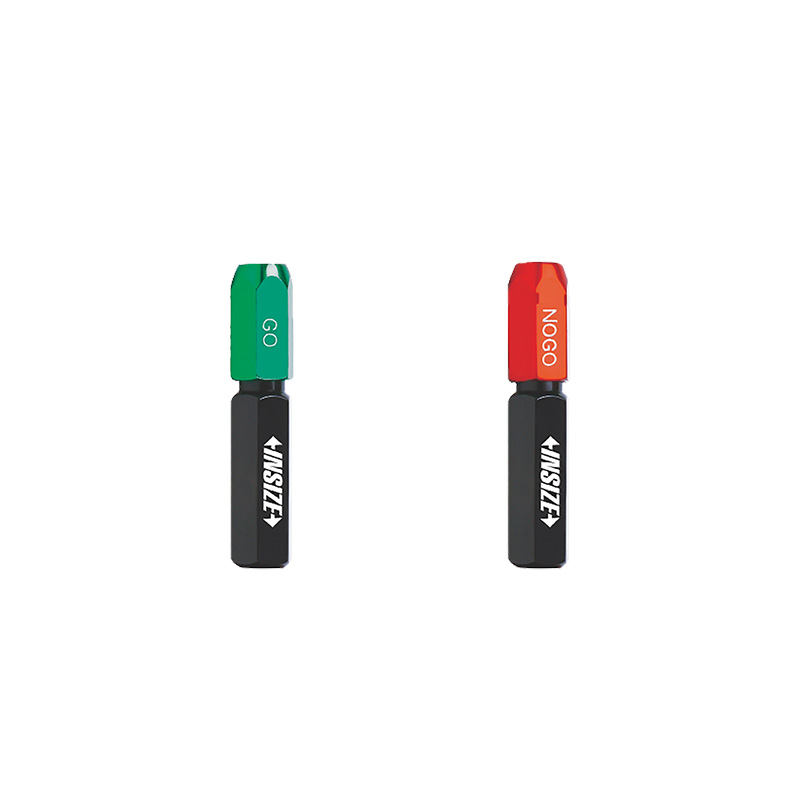

单头针规手柄(操作需扳手)
型号: 7344
安装针规时需要用扳手拧紧
夹持范围0.2~7.14mm的夹头材质为铜，7.14~24.80mm的夹头材质为铝
| 型号 | 材质 | 适用针规直径 |
|---|---|---|
| 7344-0G | 铜 | 0.2-1.02mm |
| 7344-1G | 铜 | 1.02-1.91mm |
| 7344-2G | 铜 | 1.91-3.33mm |
| 7344-3G | 铜 | 3.33-4.57mm |
| 7344-4G | 铜 | 4.57-5.79mm |
| 7344-5G | 铜 | 5.79-7.14mm |
| 7344-6G | 铝 | 7.14-8.66mm |
| 7344-7G | 铝 | 8.66-10.31mm |
| 7344-8G | 铝 | 10.31-11.81mm |
| 7344-9G | 铝 | 11.81-12.95mm |
| 7344-10G | 铝 | 12.95-14.71mm |
| 7344-11G | 铝 | 14.71-16.13mm |
| 7344-12G | 铝 | 16.13-17.88mm |
| 7344-13G | 铝 | 17.88-19.30mm |
| 7344-15G | 铝 | 19.30-24.80mm |
| 7344-0R | 铝 | 0.2-1.02mm |
| 7344-1R | 铝 | 1.02-1.91mm |
| 7344-2R | 铝 | 1.91-3.33mm |
| 7344-3R | 铝 | 3.33-4.57mm |
| 7344-4R | 铝 | 4.57-5.79mm |
| 7344-5R | 铝 | 5.79-7.14mm |
| 7344-6R | 铝 | 7.14-8.66mm |
| 7344-7R | 铝 | 8.66-10.31mm |
| 7344-8R | 铝 | 10.31-11.81mm |
| 7344-9R | 铝 | 11.81-12.95mm |
| 7344-10R | 铝 | 12.95-14.71mm |
| 7344-11R | 铝 | 14.71-16.13mm |
| 7344-12R | 铝 | 16.13-17.88mm |
| 7344-13R | 铝 | 17.88-19.30mm |
| 7344-15R | 铝 | 19.30-24.80mm |
