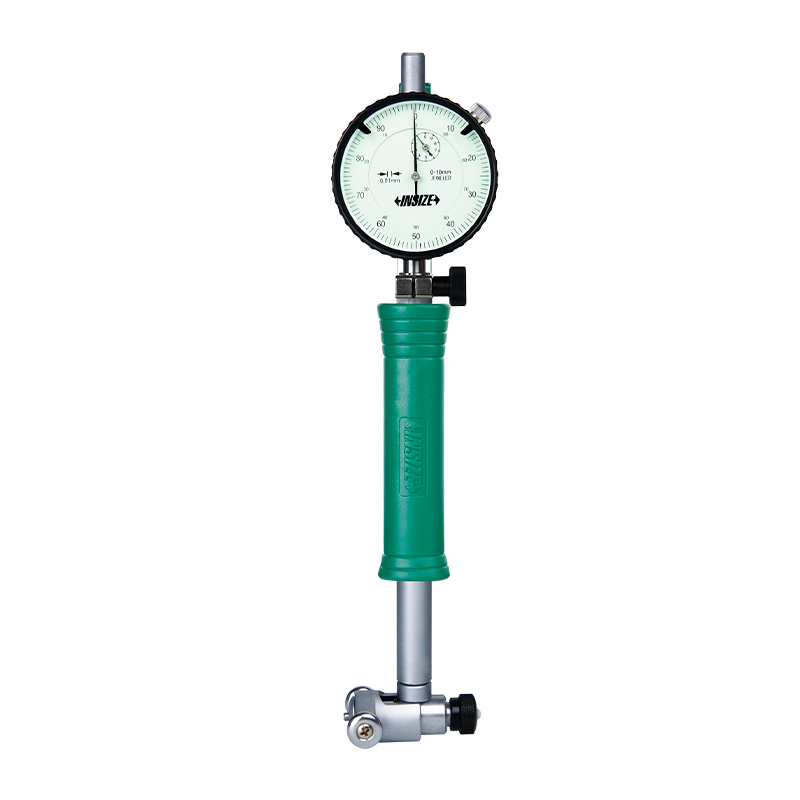

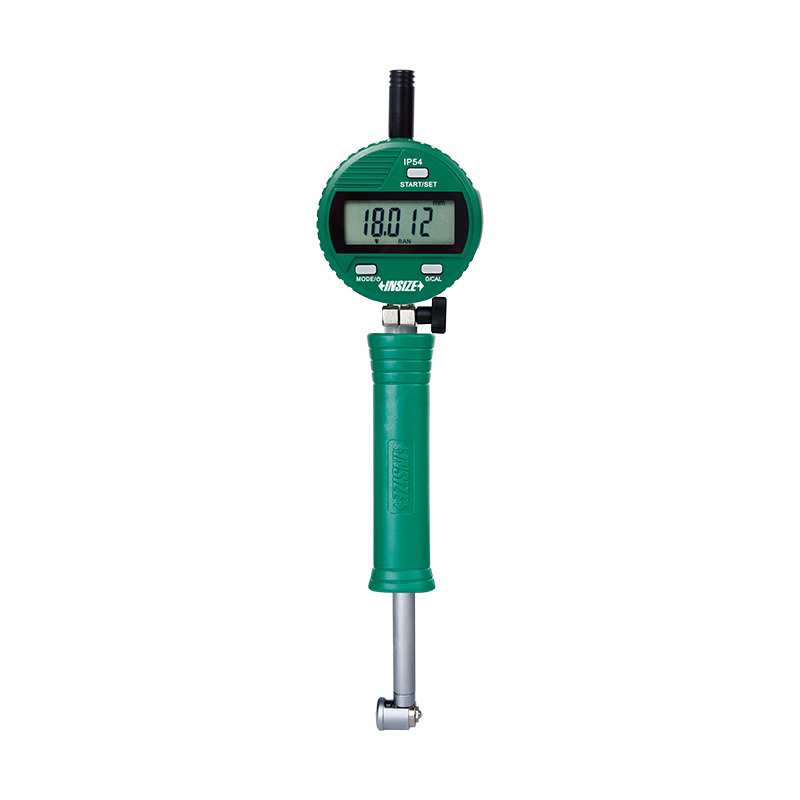

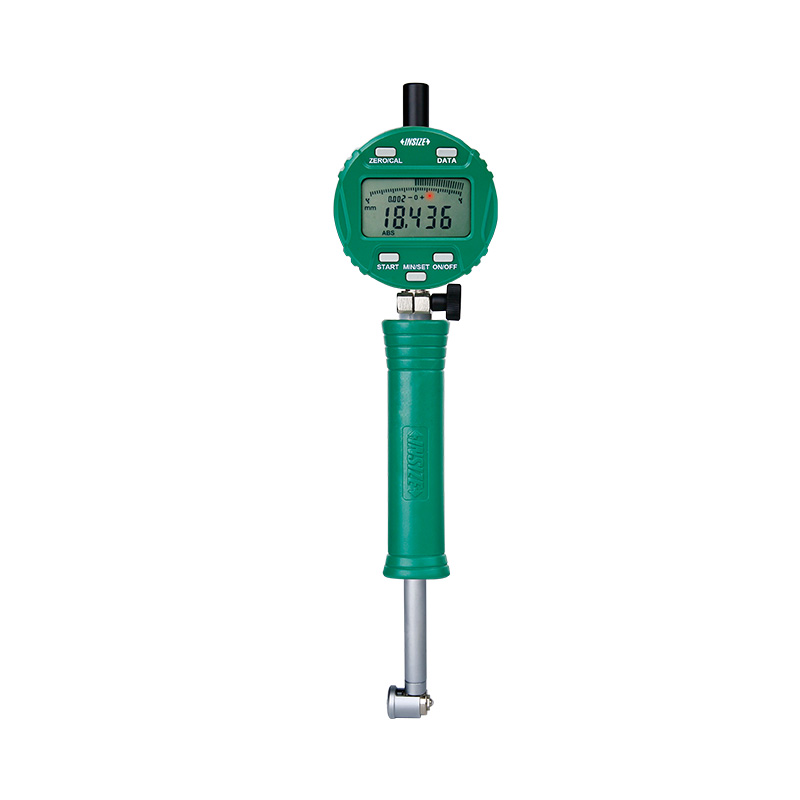

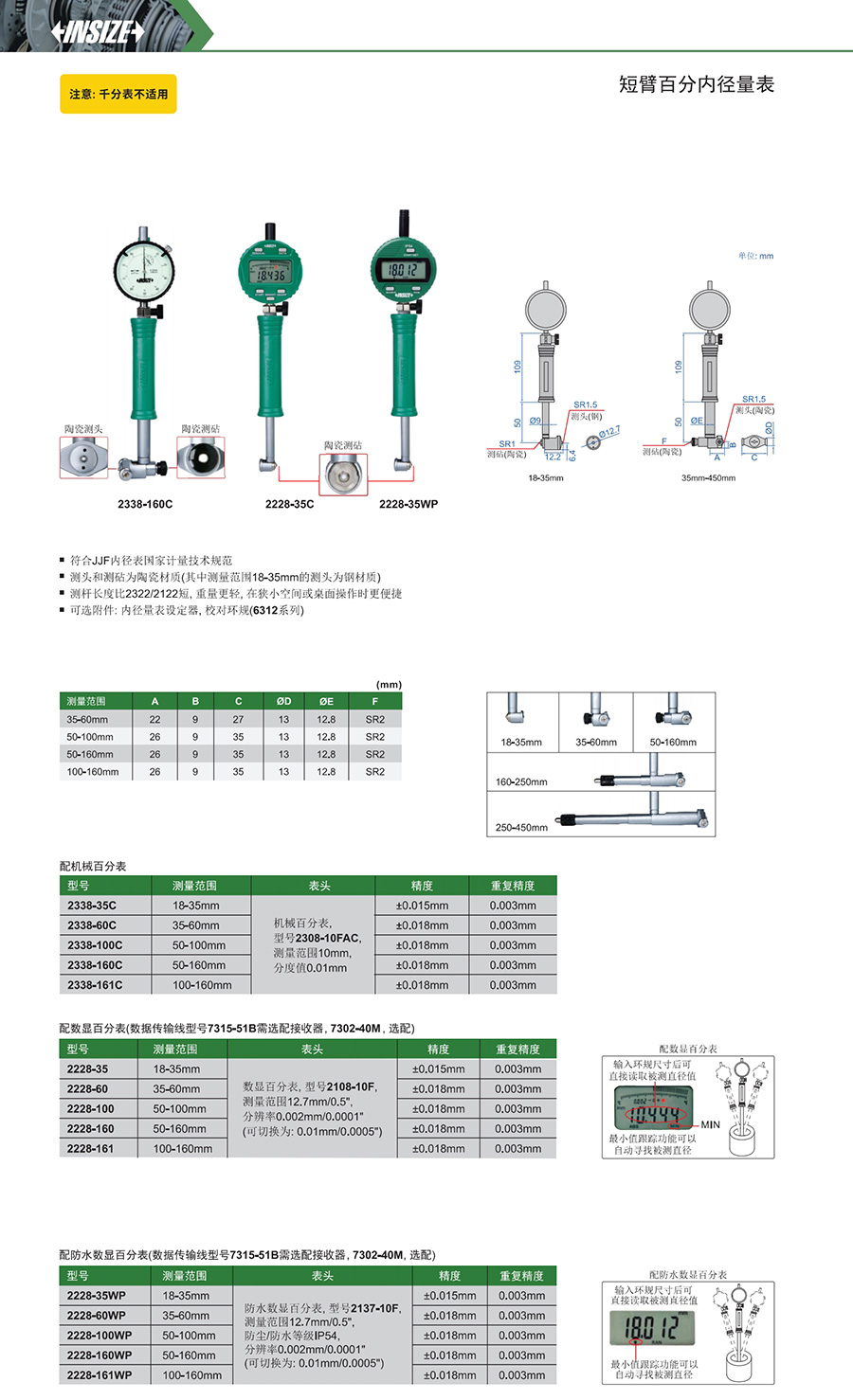

短臂百分内径量表
型号: 2338/2228
符合JJF内径表国家计量技术规范
测头和测砧为陶瓷材质(其中测量范围18-35mm的测头为钢材质)
测杆长度比2322/2122短, 重量更轻, 在狭小空间或桌面操作时更便捷
| 型号 | 测量范围 | 精度 | 重复精度 |
|---|---|---|---|
| 2338-35C | 18-35mm | ±0.015mm | 0.003mm |
| 2338-60C | 35-60mm | ±0.018mm | 0.003mm |
| 2338-100C | 50-100mm | ±0.018mm | 0.003mm |
| 2338-160C | 50-160mm | ±0.018mm | 0.003mm |
| 2338-161C | 100-160mm | ±0.018mm | 0.003mm |
| 2228-35 | 18-35mm | ±0.015mm | 0.003mm |
| 2228-60 | 35-60mm | ±0.018mm | 0.003mm |
| 2228-100 | 50-100mm | ±0.018mm | 0.003mm |
| 2228-160 | 50-160mm | ±0.018mm | 0.003mm |
| 2228-161 | 100-160mm | ±0.018mm | 0.003mm |
| 2228-35WP | 18-35mm | ±0.015mm | 0.003mm |
| 2228-60WP | 35-60mm | ±0.018mm | 0.003mm |
| 2228-100WP | 50-100mm | ±0.018mm | 0.003mm |
| 2228-160WP | 50-160mm | ±0.018mm | 0.003mm |
| 2228-161WP | 100-160mm | ±0.018mm | 0.003mm |
